CS
0.276 in
(7.00 mm)
ID
3.543 in
(90.00 mm)
HN80GR00-OR-7X90
Size: Metric7X90 O-Ring
HN80GR00
HNBR (Hydrogenated Nitrile)
80
Shore A
General Purpose Material
Color: Green
Detailed Description

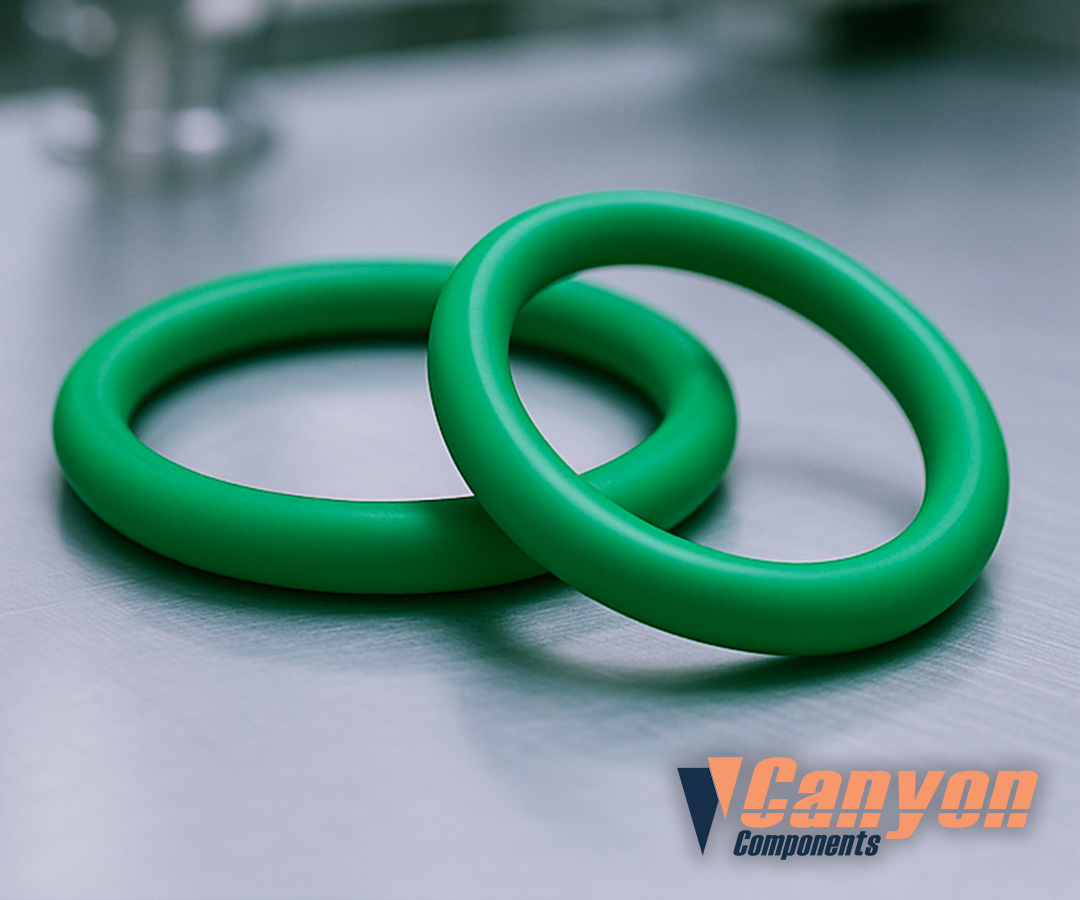

HN80GR00-OR-7X90 is a Green, 80 Shore A, HNBR (Hydrogenated Nitrile) O-Ring. HN80GR00 is manufactured with the following features & specifications: General Purpose Material. HN80GR00-OR-7X90 is Metric size 7X90 O-Ring also referred to as 7mm (Cross Sectional Diameter (CS)) x 90mm (Inside Diameter (ID)).
| Technical Specification | Value |
|---|---|
| Compound Number | HN80GR00 |
| Material | HNBR (Hydrogenated Nitrile) |
| Color | Green |
| Durometer | 80 Shore A |
| High Temperature | 165 °C / 329 °F |
| Low Temperature | -40 °C / -40 °F |
| Geometry Specifications | |
| Cross Sectional Geometry | O-Ring |
| Size Standard | Metric |
| Size | 7X90 |
| Cross Section (CS) | 7.00 mm / 0.276 in |
| Inside Diameter (ID) | 90.00 mm / 3.543 in |
