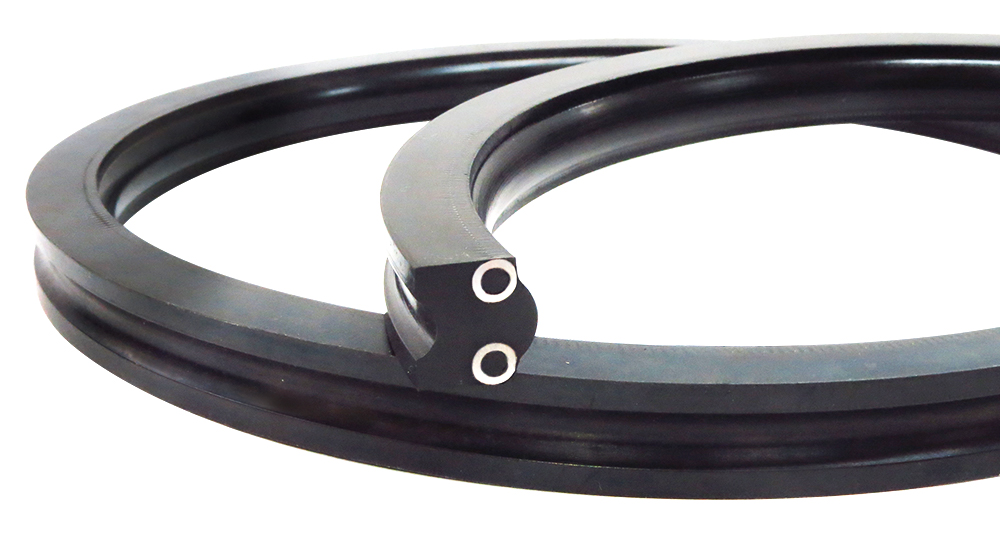

FS-Seals: Features, Applications, Materials, and Benefits
FS-Seals are specialized sealing components designed for use in demanding environments, particularly in industries where high pressures, extreme temperatures, and aggressive chemicals are present. Unlike traditional seals, FS-Seals are engineered to provide superior performance, especially in the oil and gas industry, where resistance to explosive decompression (AED) is crucial. This guide explores the features, common applications, materials, pros and cons of FS-Seals, with a focus on their use in wellheads and other critical components in the oil and gas sector.
Anti-explosive decompression CanRez® FFKM and Kalrez® O-rings, gasket rapid manufacturing, & custom molded parts are available now!
Check with one of Canyon’s helpful product engineers for an expert material and manufacturing recommendation.
Features of FS-Seals
FS-Seals offer several advanced features that make them suitable for harsh environments:
- Explosive Decompression (AED) Resistance: One of the key features of FS-Seals is their resistance to explosive decompression, also known as rapid gas decompression (RGD). Most FS-Seal materials are tested to NACE TM0297, NORSOK M-710, or API 6A to prove their performance in high CO2 content AED environments and sour gas. This makes them ideal for high-pressure applications in the oil and gas industry.
- High-Pressure Tolerance: FS-Seals are designed to withstand extreme pressures, ensuring reliable sealing even in the most challenging conditions.
- Temperature Resistance: FS-Seals can operate effectively across a wide temperature range, from extreme cold to high heat, maintaining their integrity and performance.
- Chemical Resistance: These seals offer excellent resistance to aggressive chemicals, including oils, gases, and other harsh substances commonly encountered in industrial environments.
- Durability: Built to last, FS-Seals provide long-term performance in demanding applications, reducing the need for frequent replacements and maintenance.
Common Applications of FS-Seals
FS-Seals are used in a variety of industries, but they are particularly essential in the oil and gas sector. Common applications include:
- Wellheads: In wellheads, FS-Seals provide critical sealing to prevent leaks and ensure safe operation under high pressure and temperature conditions. Their AED resistance is especially important in these applications, where sudden pressure changes can occur.
- Downhole Tools: FS-Seals are used in downhole tools in oil and gas exploration and production, where they must withstand harsh conditions and maintain performance over long periods.
- Subsea Equipment: FS-Seals are used in subsea valves, connectors, and other equipment that operates in extreme depths, where high pressure and aggressive environments demand superior sealing performance.
- Hydraulic Systems: In hydraulic systems, FS-Seals ensure reliable sealing in pumps, actuators, and other components, where maintaining pressure and preventing leaks are essential.
- Chemical Processing: In chemical processing plants, FS-Seals provide sealing solutions that resist aggressive chemicals and high temperatures, ensuring safe and efficient operations.
Please consult a Canyon Components Engineer about your specific application and we will use our decades of experience to formulate a solution that fits your need.
Get a Quote Now!
FS-Seal Materials
FS-Seals are made from advanced materials designed to provide superior performance in demanding environments. Common materials include the following:
Canyon Components strives to meet all customer service requests. Feel free to contact Canyon Components engineering and let our knowledgeable staff help you design the perfect part for your needs.
CanRez™ FFKM Perfluoroelastomer
Extreme temperatures & chemicals require extreme solutions! CanRez™ FFKM anti-explosive decompression materials for FS-Seals offer extreme reliability where you need it most! Thousands of sizes in stock now!
Kalrez® FFKM Perfluoroelastomer
Canyon Components offers Kalrez® Perfluoroelastomer (FFKM) anti-explosive decompression materials for FS-Seals, O-rings, gaskets, & custom molded parts at competitive prices and with great lead-times.
Parker® O-rings, Parofluor parts, parker FKM Viton
Canyon Components offers Parker Hannifin® anti-explosive decompression materials for FS-Seals, Gaskets, Perfluoroelastomer (FFKM) parts, & custom molded parts at competitive prices and with great lead-times.
FKM (Viton®, Fluorocarbon)
FKM anti-explosive decompression materials for FS-Seals, O-rings, gaskets, & custom molded parts exhibit excellent mechanical attributes as well as excellent resistance to high temperatures, mineral oil, ozone, fuels, hydraulic fluids, and many other solvents and chemicals.
Aflas® (TFE/P)
TFE/P (Aflas) anti-explosive decompression materials for FS-Seals, O-rings, gaskets, & custom molded parts gives high resistance to steam, hot water, atmospheric wear, and many chemicals. TFE/P compounds provide superior performance in water, steam and virtually all caustic chemicals.
EPDM (Ethylene Propylene)
EPDM anti-explosive decompression materials for FS-Seals, O-rings, gaskets, & custom molded parts can operate over a wide temperature range, and are compatible with glycol fluids that cause problems for most typical elastomeric seals.
HNBR (Hydrogenated Nitrile)
Hydrogenated Nitrile anti-explosive decompression materials for FS-Seals, O-rings, gaskets, & custom molded parts offer higher strength and reduced degradation at high temperatures compared to conventional Nitrile materials. These properties make HNBR materials popular in the oil and gas industry, as well as many applications in the chemical industry.
XNBR (Carboxylated Nitrile)
XNBR anti-explosive decompression materials for FS-Seals, gaskets, & custom molded parts are similar to Nitrile, but the backbone has been chemically modified with a Carboxylic Acid group. The resulting elastomer is a Nitrile rubber with outstanding abrasion and chemical resistance, superior to that of traditional Nitrile.
PTFE (Teflon)
The harshest environments require specialized solutions. Often times, a Canyon Components PTFE Spring Energized Seals are used in harsh chemical environments. Polytetrafluoroethylene, commonly known as PTFE or Teflon®, is a high-performance fluoropolymer known for its exceptional chemical resistance, low friction, and non-stick properties.
Product Types
Anti-Explosive Decompression Seals
Learn more about our specialized products for the Oil & Gas Industry, highlighting our Norsok and NACE tested elastomeric materials, O-rings, and custom components designed to meet the sector's stringent specifications. It emphasizes our commitment to durability, resistance to extreme conditions, and compliance with industry standards, ensuring optimal performance in harsh operational environments.
Specialty Compliances
Canyon have materials available for O-rings, gaskets, & custom parts with compliances ranging from USP Class VI <87> & <88> for medical applications, to FDA CFR 21.177.2600 grades A through F for different food types, to the various drinking water specifications like KTW and NSF. Whether it's metal, rubber, or plastic, Canyon can meet your needs!
Custom Parts
Here at Canyon Components, we make sure to offer our customers any manufacturing technique they desire. Whether your O-rings, gaskets, & custom molded parts be rubber, plastic, or metal, rest assured that Canyon Components can make it!
Gaskets & Custom Cutting
Whether your custom cut parts be rubber, plastic, sponge, composite, or metal, rest assured that Canyon Components can make it! Canyon Components strives to meet all customer service requests. If you need something that isn't listed, feel free to contact a Canyon Components product and application consultant.
Please consult a Canyon Components Engineer about your specific application and we will use our decades of experience to formulate a solution that fits your need.
FS-Seals in the Oil and Gas Industry
The oil and gas industry places some of the most demanding requirements on sealing components, and FS-Seals are specifically designed to meet these challenges:
- AED Resistance: In oil and gas applications, FS-Seals are often exposed to rapid pressure changes that can cause standard seals to fail due to explosive decompression. FS-Seals are engineered to resist this phenomenon, ensuring reliable performance in wellheads, subsea equipment, and downhole tools.
- Wellhead Applications: Wellheads are critical components in oil and gas production, where maintaining a secure seal is essential for safety and efficiency. FS-Seals are used in wellheads to prevent leaks, withstand high pressures, and resist the aggressive chemicals found in drilling fluids and production environments.
- Long-Term Durability: The harsh conditions of oil and gas operations, including exposure to corrosive substances, extreme temperatures, and high pressures, demand seals that can perform reliably over time. FS-Seals are built to last, reducing downtime and maintenance costs.
Canyon Components strives to meet all customer service requests. Feel free to contact Canyon Components engineering and let our knowledgeable staff help you design the perfect part for your needs.
FS-Seals Pros & Cons
FS-Seals are essential components in industries where extreme conditions and high-pressure environments demand superior sealing performance. With their resistance to explosive decompression, high-pressure tolerance, and durability, FS-Seals are particularly valuable in the oil and gas sector, where they play a critical role in wellheads and other vital equipment. While they may come with higher costs and installation complexity, the long-term benefits of FS-Seals in terms of reliability, safety, and reduced maintenance make them a worthwhile investment for demanding applications. Understanding the features, materials, and specific uses of FS-Seals will help you make informed decisions to ensure optimal performance in your systems.
Canyon Components strives to meet all customer service requests. Feel free to contact Canyon Components engineering and let our knowledgeable staff help you design the perfect part for your needs.
Pros of FS-Seals
FS-Seals offer several advantages that make them a preferred choice in demanding applications:
- Superior AED Resistance: FS-Seals are specifically designed to resist explosive decompression, making them essential in high-pressure environments like oil and gas production.
- Wide Temperature Range: FS-Seals can operate effectively across a broad temperature spectrum, from extreme cold to high heat.
- Chemical Resistance: FS-Seals provide excellent resistance to aggressive chemicals, oils, and gases, ensuring long-lasting performance in harsh environments.
- Durability: FS-Seals are built to withstand extreme conditions, offering long-term reliability and reducing the need for frequent replacements.
Cons of FS-Seals
While FS-Seals offer many benefits, there are also some potential drawbacks to consider:
- Cost: Due to their advanced materials and specialized design, FS-Seals can be more expensive than standard seals, which may increase the overall cost of the system.
- Complexity of Installation: The precise requirements of FS-Seals, particularly in critical applications like wellheads, may require specialized installation techniques and equipment.
- Limited Availability: Depending on the specific material and design, FS-Seals may have longer lead times and limited availability compared to standard seals.
