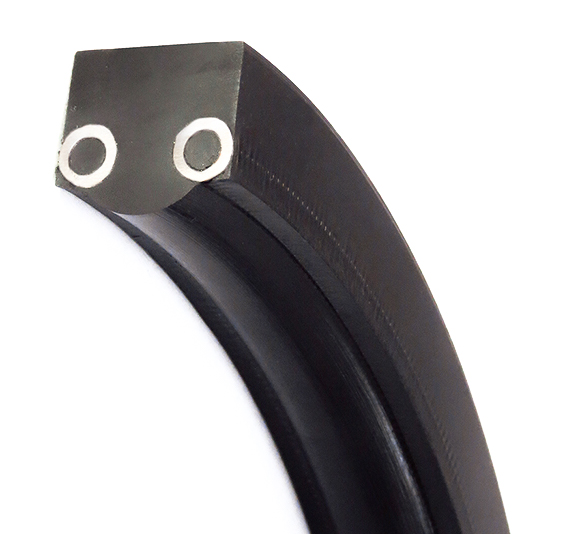

S-Seals: Robust High-Pressure Sealing
S-Seals are specialized sealing solutions designed for use in high-pressure and high-temperature applications, particularly in the oil and gas industry. These seals offer exceptional performance and durability, ensuring reliable operation in demanding environments. This guide covers the features, common applications, and the pros and cons of S-Seals.
CanRez® FFKM and Kalrez® S-Seals, grommets, O-rings, gasket rapid manufacturing, & custom molded parts are available now!
Check with one of Canyon’s helpful product engineers for an expert material and manufacturing recommendation.
Features of S-Seals
S-Seals are engineered with specific features that make them ideal for challenging applications:
- High-Pressure Resistance: S-Seals are designed to withstand extreme pressures, making them suitable for applications in high-pressure environments such as wellheads and downhole tools.
- Temperature Tolerance: These seals can operate effectively in a wide range of temperatures, from extreme cold to intense heat, ensuring reliable sealing in harsh conditions.
- Durable Construction: S-Seals are made from advanced elastomers and reinforced with metal or other durable materials to enhance their strength and longevity.
- Enhanced Sealing Capability: The unique design of S-Seals allows for excellent sealing performance, even in applications with large pressure fluctuations and varying temperatures.
- Resilience to Chemical Exposure: S-Seals are resistant to a wide range of chemicals, including corrosive fluids and gases, making them suitable for use in aggressive environments.
Common Applications of S-Seals
S-Seals are used in a variety of industries where high performance under challenging conditions is required:
- Oil and Gas Industry: S-Seals are commonly used in wellheads, blowout preventers (BOPs), valves, and other critical components in the oil and gas industry, where they provide reliable sealing under high pressure and temperature conditions.
- Subsea Equipment: In subsea applications, S-Seals ensure the integrity of sealing systems in deepwater drilling and production operations, where extreme pressures and temperatures are common.
- Petrochemical Processing: S-Seals are used in chemical processing plants, particularly in applications involving aggressive chemicals and high temperatures, where reliable sealing is essential to prevent leaks and ensure safety.
- Aerospace: S-Seals are used in aerospace applications where high-pressure sealing is required, such as in hydraulic systems, fuel systems, and landing gear assemblies.
- Industrial Machinery: S-Seals are also used in heavy-duty industrial machinery, particularly in hydraulic and pneumatic systems, where they provide reliable sealing under demanding operating conditions.
Please consult a Canyon Components Engineer about your specific application and we will use our decades of experience to formulate a solution that fits your need.
Get a Quote Now!
S-Seal Materials
CanRez™ FFKM Perfluoroelastomer
Extreme temperatures & chemicals require extreme solutions! CanRez™ FFKM S-Seal materials offer extreme reliability where you need it most! Thousands of sizes in stock now!
CanGuard™ RFI & EMI Shielding Materials
CanGuard™ S-Seal materials have been developed to offer superior sealing solutions with enhanced electromagnetic interference (EMI) shielding and radio frequency interference (RFI) shielding.
Kalrez® FFKM Perfluoroelastomer
Canyon Components offers Kalrez® Perfluoroelastomer (FFKM) S-Seals, O-rings, gaskets, & custom molded parts at competitive prices and with great lead-times.
Parker® S-Seals, O-rings, Parofluor parts, parker FKM Viton
Canyon Components offers Parker Hannifin® S-Seals, O-rings, Gaskets, Perfluoroelastomer (FFKM) parts, & custom molded parts at competitive prices and with great lead-times.
FKM (Viton®, Fluorocarbon)
FKM S-Seals, compounds, O-rings, gaskets, & custom molded parts exhibit excellent mechanical attributes as well as excellent resistance to high temperatures, mineral oil, ozone, fuels, hydraulic fluids, and many other solvents and chemicals.
Aflas® (TFE/P)
TFE/P (Aflas) S-Seals, compounds, O-rings, gaskets, & custom molded parts gives high resistance to steam, hot water, atmospheric wear, and many chemicals. TFE/P compounds provide superior performance in water, steam and virtually all caustic chemicals.
EPDM (Ethylene Propylene)
EPDM S-Seals, materials, O-rings, gaskets, & custom molded parts can operate over a wide temperature range, and are compatible with glycol fluids that cause problems for most typical elastomeric seals.
NBR (Nitrile, Buna-N)
Nitrile S-Seals, O-rings, gaskets, & custom molded parts are very oil-resistant, have strong mechanical properties, are resistant to wear, and are relatively inexpensive. These properties make Nitrile the most commonly used general purpose O-ring, gasket, & custom molded part material.
HNBR (Hydrogenated Nitrile)
Hydrogenated Nitrile S-Seals, O-rings, gaskets, & custom molded parts offer higher strength and reduced degradation at high temperatures compared to conventional Nitrile materials. These properties make HNBR materials popular in the oil and gas industry, as well as many applications in the chemical industry.
XNBR (Carboxylated Nitrile)
XNBR S-Seals, O-rings, gaskets, & custom molded parts are similar to Nitrile, but the backbone has been chemically modified with a Carboxylic Acid group. The resulting elastomer is a Nitrile rubber with outstanding abrasion and chemical resistance, superior to that of traditional Nitrile.
Product Types
Specialty Compliances
Canyon have materials available for S-Seals, O-rings, gaskets, & custom parts with compliances ranging from USP Class VI <87> & <88> for medical applications, to FDA CFR 21.177.2600 grades A through F for different food types, to the various drinking water specifications like KTW and NSF. Whether it's metal, rubber, or plastic, Canyon can meet your needs!
Custom Parts
Here at Canyon Components, we make sure to offer our customers any manufacturing technique they desire. Whether your S-Seals, O-rings, gaskets, & custom molded parts be rubber, plastic, or metal, rest assured that Canyon Components can make it!
Gaskets & Custom Cutting
Whether your custom cut parts be rubber, plastic, sponge, composite, or metal, rest assured that Canyon Components can make it! Canyon Components strives to meet all customer service requests. If you need something that isn't listed, feel free to contact a Canyon Components product and application consultant.
Infinite "Giant" Diameter O-Rings
By either Continuous Molding O-rings, or Splice & Vulcanizing O-rings, Canyon can provide mold-less, infinitely large O-rings at competitive prices!
S-Seals Pros & Cons
S-Seals are a highly effective sealing solution for high-pressure and high-temperature applications, particularly in the oil and gas, petrochemical, and aerospace industries. With features such as exceptional durability, superior sealing performance, and resistance to extreme conditions, S-Seals provide reliable operation in the most demanding environments. While they come at a higher cost and may require specialized installation, the benefits of using S-Seals often outweigh these considerations, making them a valuable investment for critical sealing applications. Understanding the features, applications, and potential drawbacks of S-Seals will help you make informed decisions to ensure optimal performance in your systems.
Canyon Components strives to meet all customer service requests. Feel free to contact Canyon Components engineering and let our knowledgeable staff help you design the perfect part for your needs.
Pros of S-Seals
S-Seals offer several advantages that make them a preferred choice for high-pressure and high-temperature applications:
- Exceptional Durability: The robust construction of S-Seals ensures long-lasting performance, even in the most challenging environments, reducing the need for frequent replacements.
- Superior Sealing Performance: S-Seals provide excellent sealing capability, even under fluctuating pressures and temperatures, ensuring reliable operation in critical applications.
- Versatility: S-Seals can be used in a wide range of applications, from oil and gas to aerospace, making them a versatile solution for various industries.
- Chemical Resistance: The materials used in S-Seals are resistant to a wide range of chemicals, ensuring that they maintain their integrity and performance even when exposed to corrosive substances.
- Reduced Maintenance: The durability and reliability of S-Seals reduce the need for frequent maintenance and downtime, leading to lower overall operating costs.
Cons of S-Seals
While S-Seals offer many benefits, there are also some potential drawbacks to consider:
- Higher Cost: Due to their advanced materials and construction, S-Seals can be more expensive than standard seals, which may be a consideration for cost-sensitive applications.
- Complex Installation: The installation of S-Seals may require specialized tools and expertise, particularly in high-pressure environments, which can increase the complexity of maintenance and repair.
- Limited Availability: S-Seals are specialized products and may not be as widely available as standard seals, potentially leading to longer lead times for procurement.
