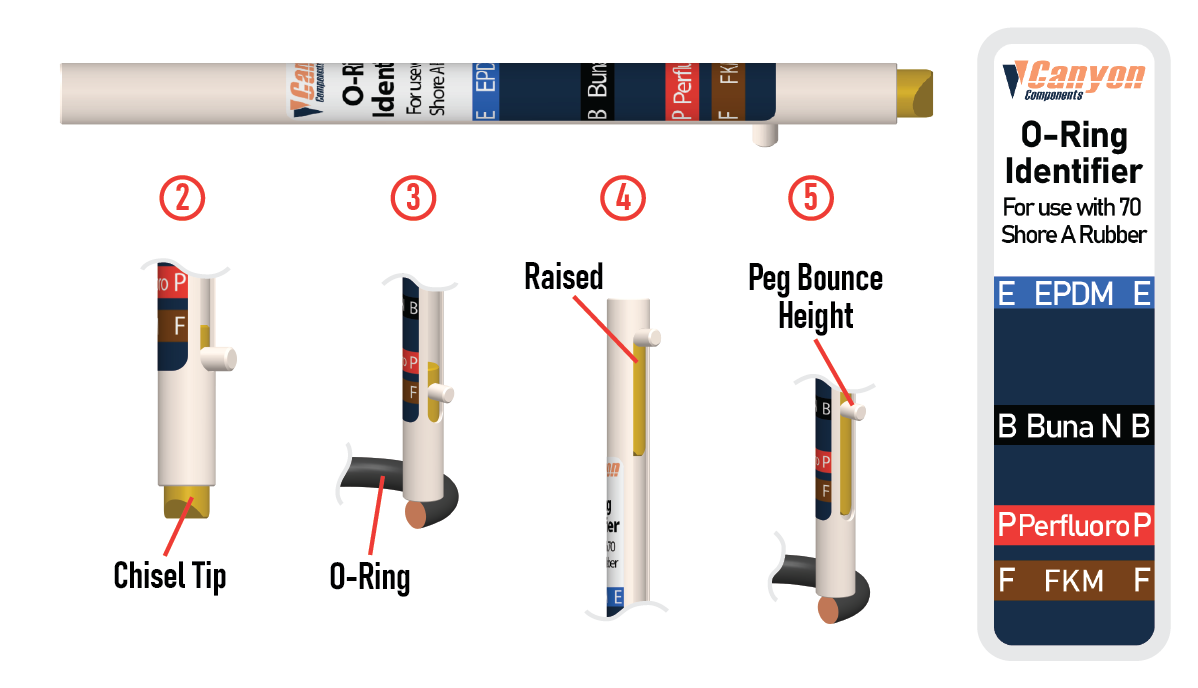

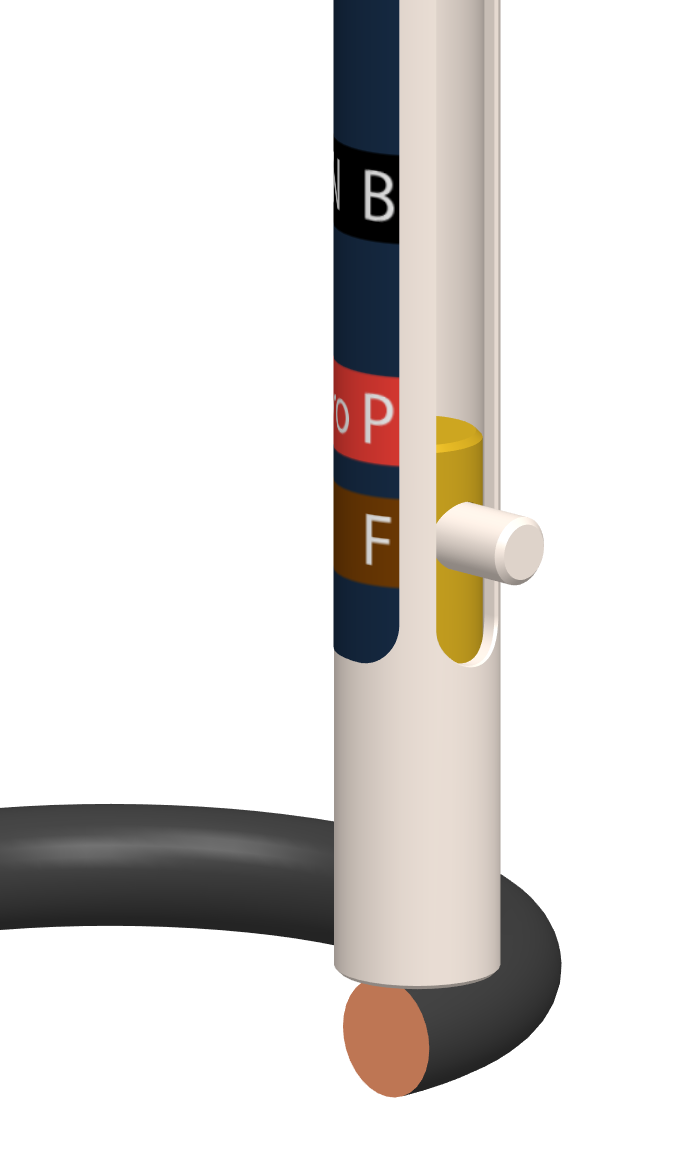

O-Ring Material Bounce Tester
An O-ring material bounce tester, also known as an ORID (O-Ring Identification Device), is an essential tool for identifying and testing O-ring materials based on their bounce resilience. This device helps users distinguish between different elastomer compounds, aiding in quality control and material verification. By observing the rebound height of an O-ring on a calibrated bounce surface, users can quickly assess if the material matches the desired specification. ORID devices are widely used in industries requiring stringent quality control for elastomeric components.
CanRez® FFKM and Kalrez® grommets, O-rings, gasket rapid manufacturing, & custom molded parts are available now!
Check with one of Canyon’s helpful product engineers for an expert material and manufacturing recommendation.
Features of the O-Ring Material Bounce Tester (ORID)
O-ring material bounce testers come with several key features designed to simplify and enhance material testing:
- Calibrated Testing Surface: The device includes a standardized surface that ensures consistent bounce measurement for accurate comparison of different elastomer compounds.
- Adjustable Measurement Scale: Many ORID devices come with an adjustable scale or measurement markings to quantify the rebound height of each test, making it easy to record and compare results.
- Compact and Portable Design: Typically lightweight and portable, bounce testers are ideal for on-site testing or laboratory environments, allowing easy transportation between testing locations.
- Non-Destructive Testing: The bounce test is non-destructive, meaning it does not damage or alter the O-ring, allowing the same sample to be used in the final application if desired.
- Simple Operation: Bounce testers are designed for straightforward operation, requiring minimal training to conduct a test, which makes them accessible for use by a wide range of personnel.
Common Applications of the O-Ring Material Bounce Tester
Bounce testers are used in several industries where O-ring material verification is critical:
- Quality Control: In manufacturing, bounce testers verify that O-rings meet material specifications, ensuring the correct compound is used for each application and reducing the risk of errors.
- Material Identification: Bounce testers help differentiate between elastomers with similar appearances, such as EPDM, Nitrile, and Viton, by providing a measurable rebound that corresponds to each compound’s unique properties.
- Incoming Material Inspection: For companies that source O-rings from multiple suppliers, a bounce tester can verify material consistency and compliance with internal specifications upon arrival, reducing the chances of introducing incorrect materials into production.
- Field Testing: Maintenance technicians use bounce testers in field applications to quickly identify replacement O-rings when original specifications are not readily available, ensuring compatibility with equipment requirements.
- Educational and Training Purposes: ORID devices are used in technical training programs to teach new employees and students about material properties and the differences between elastomer types.
Please consult a Canyon Components Engineer about your specific application and we will use our decades of experience to formulate a solution that fits your need.
Get a Quote Now!
O-ring Materials
CanRez™ FFKM Perfluoroelastomer
Extreme temperatures & chemicals require extreme solutions! CanRez™ FFKM materials offer extreme reliability where you need it most! Thousands of sizes in stock now!
CanGuard™ RFI & EMI Shielding Materials
CanGuard™ materials have been developed to offer superior sealing solutions with enhanced electromagnetic interference (EMI) shielding and radio frequency interference (RFI) shielding.
Kalrez® FFKM Perfluoroelastomer
Canyon Components offers Kalrez® Perfluoroelastomer (FFKM) O-rings, gaskets, & custom molded parts at competitive prices and with great lead-times.
Parker® O-rings, Parofluor parts, parker FKM Viton
Canyon Components offers Parker Hannifin® O-rings, Gaskets, Perfluoroelastomer (FFKM) parts, & custom molded parts at competitive prices and with great lead-times.
FKM (Viton®, Fluorocarbon)
FKM compounds, O-rings, gaskets, & custom molded parts exhibit excellent mechanical attributes as well as excellent resistance to high temperatures, mineral oil, ozone, fuels, hydraulic fluids, and many other solvents and chemicals.
Aflas® (TFE/P)
TFE/P (Aflas) compounds, O-rings, gaskets, & custom molded parts gives high resistance to steam, hot water, atmospheric wear, and many chemicals. TFE/P compounds provide superior performance in water, steam and virtually all caustic chemicals.
Fluorosilicone (FVMQ)
The mechanical and physical properties of Fluorosilicone O-rings, gaskets, & custom molded parts are very similar to silicone. Fluorosilicone O-rings, gaskets, & custom molded parts offer improved flexibility and strength, better resistance to fuels and mineral oil, but reduced hot air resistance.
Silicone (VMQ, PVMQ)
Silicone seals, O-rings, gaskets, & custom molded parts are excellent for extreme temperatures in static applications. Canyon Components carries a range of silicone materials, and we are happy to custom tailor a seal to meet your application requirements!
EPDM (Ethylene Propylene)
EPDM materials, O-rings, gaskets, & custom molded parts can operate over a wide temperature range, and are compatible with glycol fluids that cause problems for most typical elastomeric seals.
NBR (Nitrile, Buna-N)
Nitrile O-rings, gaskets, & custom molded parts are very oil-resistant, have strong mechanical properties, are resistant to wear, and are relatively inexpensive. These properties make Nitrile the most commonly used general purpose O-ring, gasket, & custom molded part material.
HNBR (Hydrogenated Nitrile)
Hydrogenated Nitrile O-rings, gaskets, & custom molded parts offer higher strength and reduced degradation at high temperatures compared to conventional Nitrile materials. These properties make HNBR materials popular in the oil and gas industry, as well as many applications in the chemical industry.
XNBR (Carboxylated Nitrile)
XNBR O-rings, gaskets, & custom molded parts are similar to Nitrile, but the backbone has been chemically modified with a Carboxylic Acid group. The resulting elastomer is a Nitrile rubber with outstanding abrasion and chemical resistance, superior to that of traditional Nitrile.
Neoprene (CR)
Chloroprene was the first synthetic rubber, and was developed commercially under the name Neoprene®. Chloroprene rubbers, O-rings, gaskets, & custom molded parts contain Chlorine in the polymer to reduce the reactivity to many oxidizing agents, as well as to oil and flame.
Polyurethane (PU, AU)
Polyurethane O-rings, gaskets, & custom molded parts generally have two or three times greater tensile strength and wear resistance than Nitrile and comparable polymers. Polyurethane also provides excellent permeation resistance when compared to most rubbers.
PTFE Encapsulated
FEP and PFA encapsulated O-rings consist of an elastomeric core and a seamlessly closed casing of modified PTFE. The elastomer core of encapsulated O-rings is typically made of FKM (Viton) or VMQ (silicone) and guarantees a uniform pre-tensioning at the sealing point.
PTFE (Teflon)
The harshest environments require specialized solutions. Often times, a Canyon Components PTFE O-rings are used in harsh chemical environments. Polytetrafluoroethylene, commonly known as PTFE or Teflon®, is a high-performance fluoropolymer known for its exceptional chemical resistance, low friction, and non-stick properties.
Product Types
Custom Parts
Here at Canyon Components, we make sure to offer our customers any manufacturing technique they desire. Whether your O-rings, gaskets, & custom molded parts be rubber, plastic, or metal, rest assured that Canyon Components can make it!
Gaskets & Custom Cutting
Whether your custom cut parts be rubber, plastic, sponge, composite, or metal, rest assured that Canyon Components can make it! Canyon Components strives to meet all customer service requests. If you need something that isn't listed, feel free to contact a Canyon Components product and application consultant.
Infinite "Giant" Diameter O-Rings
By either Continuous Molding O-rings, or Splice & Vulcanizing O-rings, Canyon can provide mold-less, infinitely large O-rings at competitive prices!
Specialty Compliances
Canyon have materials available for O-rings, gaskets, & custom parts with compliances ranging from USP Class VI <87> & <88> for medical applications, to FDA CFR 21.177.2600 grades A through F for different food types, to the various drinking water specifications like KTW and NSF. Whether it's metal, rubber, or plastic, Canyon can meet your needs!
FS-Seals Pros & Cons
The O-ring material bounce tester, or ORID, is a practical and efficient tool for quick material verification and quality control in various industries. With features like a calibrated testing surface and portable design, bounce testers allow for easy, on-the-spot differentiation of elastomer compounds, making them invaluable for quality assurance, maintenance, and inventory management. While they may not replace detailed analytical testing for complex material identification, their ease of use and cost-effectiveness make ORID devices an essential addition to any toolkit where O-ring quality and compatibility are critical.
Canyon Components strives to meet all customer service requests. Feel free to contact Canyon Components engineering and let our knowledgeable staff help you design the perfect part for your needs.
Pros of the O-Ring Material Bounce Tester
The ORID device offers a range of benefits that make it valuable for material testing and verification:
- Quick and Efficient Material Identification: The bounce test provides immediate feedback on material type, allowing users to quickly differentiate between compounds without the need for complex testing equipment.
- Enhanced Quality Control: By verifying the material characteristics of O-rings, bounce testers help ensure consistency, which is essential for applications requiring precise sealing properties.
- Portability: Compact and lightweight, ORID devices are easy to carry and operate, making them suitable for both in-house quality control and on-site testing in the field.
- Cost-Effective Solution: Bounce testers are relatively inexpensive compared to other material identification methods, such as spectrometers or chemical testing, making them an affordable option for small and large operations alike.
- Non-Destructive Testing Method: Since the bounce test does not alter the O-ring, it can be reused if it meets the desired specifications, minimizing waste.
Cons of the O-Ring Material Bounce Tester
While ORID devices are effective, there are some limitations to consider:
- Limited to Bounce-Based Analysis: Bounce testers only measure resilience; they do not provide detailed chemical composition or physical properties, which may be necessary for certain applications.
- Potential for User Error: Accurate readings depend on consistent handling, and variations in drop height or surface flatness can lead to inconsistent results.
- Not Suitable for All Elastomers: Some elastomers, particularly very soft or very hard compounds, may not produce a measurable bounce, limiting the device's effectiveness for these materials.
- Dependent on Environmental Factors: Temperature and humidity can affect the resilience of elastomers, potentially impacting the test results if environmental conditions are not controlled.
